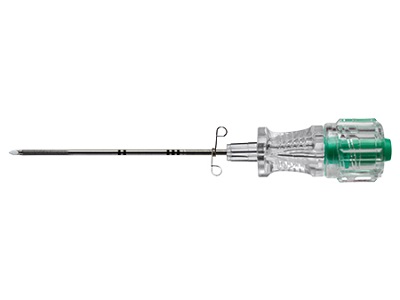

SuperCore™ Semi-Automatic Biopsy Instrument

Description

SuperCore™ Semi-Automatic Biopsy Instrument

SuperCore™ Semi-Automatic Biopsy Instrument is a lightweight, adjustable and easily maneuvered biopsy instrument. After setting the cutting cannula spring, the SuperCore™ Instrument may be operated with one hand, leaving the other hand free to manipulate a guidance device; i.e. an ultrasound probe.

:Other features include

Product is packaged with or without corresponding co-axial introducer needle-

The specimen notch is adjustable (exposing either 19 mm or 9.5 mm), providing clinical flexibility-

The specimen notch may be safely positioned in the lesion before the spring-loaded cutting cannula is fired-

Numerically ordered centimeter markings facilitate precise depth placement-

Each needle has an echogenic tip on outer cannula topromote accurate placement under ultrasound guidance-

Units per Box	Length	Description	Product Code
10	14G x 9 cm	device packaged with 13G x 3.9 cm co-axial	701214090
10	14G x 15 cm	device packaged with 13G x 9.9 cm co-axia	701214150
10	14G x 20 cm	device packaged with 13G x 14.9 cm co-axial	701214200
10	16G x 9 cm	device packaged with 15G x 3.9 cm co-axial	701216090
10	16G x 15 cm	device packaged with 15G x 9.9 cm co-axial	701216150
10	16G x 20 cm	device packaged with 15G x 14.9 cm co-axial	701216200
10	18G x 9 cm	device packaged with 17G x 3.9 cm co-axial	701218090
10	18G x 15 cm	device packaged with 17G x 9.9 cm co-axial	701218150
10	18G x 20 cm	device packaged with 17G x 14.9 cm co-axia	701218200
10	20G x 9 cm	device packaged with 19G x 4.2 cm co-axial	701220090
10	20G x 15 cm	device packaged with 19G x 10.2 cm co-axial	701220150
10	20G x 20 cm	device packaged with 19G x 15.2 cm co-axial	701220200

Units per Box	Length	Description	Product Code
10	14G x 6 cm		701114060
10	14G x 9 cm	optional co-axial needle MCXS1409LX	701114090
10	14G x 15 cm	optional co-axial needle MCXS1415LX	701114150
10	14G x 20 cm	optional co-axial needle MCXS1420LX
10	16G x 6 cm		701116060
10	16G x 9 cm	optional co-axial needle MCXS1609LX	701116090
10	16G x 15 cm	optional co-axial needle MCXS1615LX	701116150
10	16G x 20 cm	optional co-axial needle MCXS1620LX	701116200
10	18G x 6 cm		701118060
10	18G x 9 cm	optional co-axial needle MCXS1809LX	701118090
10	18G x 15 cm	optional co-axial needle MCXS1815LX	701118150
10	18G x 20 cm	optional co-axial needle MCXS1820LX	701118200
10	20G x 6 cm		701120060
10	20G x 9 cm	optional co-axial needle MCXS2009LY	701120090
10	20G x 15 cm	optional co-axial needle MCXS2015LY	701120150
10	20G x 20 cm	optional co-axial needle MCXS2020LY	701120200
Units per Box	Length	Description	Product Code
10	13G x 3.9 cm	co-axial to 701114090	MCXS1409LX
10	13G x 9.9 cm	co-axial to 701114150	MCXS1415LX
10	13G x 14.9 cm	co-axial to 701114200	MCXS1420LX
10	15G x 3.9 cm	co-axial to 701116090	MCXS1609LX
10	15G x 9.9 cm	o-axial to 701116150	MCXS1615LX
10	15G x 14.9 cm	co-axial to 701116200	MCXS1620LX
10	17G x 3.9 cm	co-axial to 701118090	MCXS1809LX
10	17G x 9.9 cm	co-axial to 701118150	MCXS1815LX
10	17G x 14.9 cm	co-axial to 701118200	MCXS1820LX
10	19G x 4.2 cm	co-axial to 701120090	MCXS2009LY
10	19G x 10.2 cm	o-axial to 701120150	MCXS2015LY
10	19G x 15.2 cm	co-axial to 701120200	MCXS2020LY

Units per Box	Length	Description	Product Code
10	14G x 6 cm		701114060
10	14G x 9 cm	optional co-axial needle MCXS1409LX	701114090
10	14G x 15 cm	optional co-axial needle MCXS1415LX	701114150
10	14G x 20 cm	optional co-axial needle MCXS1420LX
10	16G x 6 cm		701116060
10	16G x 9 cm	optional co-axial needle MCXS1609LX	701116090
10	16G x 15 cm	optional co-axial needle MCXS1615LX	701116150
10	16G x 20 cm	optional co-axial needle MCXS1620LX	701116200
10	18G x 6 cm		701118060
10	18G x 9 cm	optional co-axial needle MCXS1809LX	701118090
10	18G x 15 cm	optional co-axial needle MCXS1815LX	701118150
10	18G x 20 cm	optional co-axial needle MCXS1820LX	701118200

نیدل بیوپسی ( سوزن بیوپسی ) نیمه اتوماتیک
نیدل بیوپسی ( سوزن بیوپسی ) نیمه اتوماتیک در سایزهای مختلف
نیدل بیوپسی (سوزن بیوپسی ) نیمه اتوماتیک با نیدل کواکسیال

Additional information

Brand	Argon
